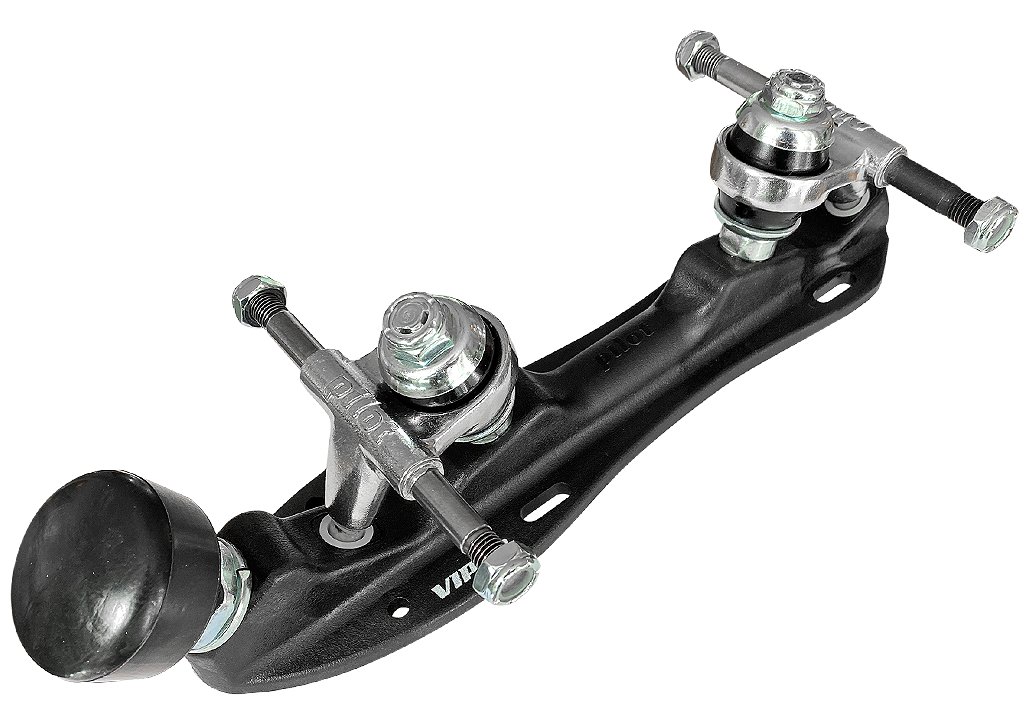

Atom Pilot Viper Nylon Roller Skate Plates, Black

The Atom Pilot Viper Nylon is a black quad roller skate plate with a reinforced Zytel nylon base, sold as a pair, with Atom's 16 degree trucks, steel kingpins and 8mm axles. It comes with a Bionic XS Stopper toe stop.

Atom Pilot Viper Nylon features

Reinforced Zytel nylon base: Light and simple.
Atom's 16 degree trucks: One-piece cast trucks.
Steel kingpins with Nyloc kingpin nuts: The nuts stay where you set them.
Rubber cushions and 8mm axles: For the standard 8mm skate bearings.
Bionic XS Stopper toe stop: For starts and stops.

Made for: Building or upgrading quad skates.

Sizing

Plate sizes are the distance between the axles, in inches. Atom's chart matches each plate size to Jackson boot sizes. For a traditional mount, Atom says to choose one size longer (1/4" longer), with the front axle about 1/4" in front of the ball of your foot, for more stability and power. For a derby mount, the front axle sits under the ball of your foot, for more agility.

Plate size	Jackson women's boot	Jackson unisex boot	Plate length (mm)
5.25	4-4.5	-	220
5.5	5-5.5	-	227
5.75	6	-	233
6	6.5-7	6	239
6.25	7.5	-	247
6.5	8-8.5	7	252
6.75	9-9.5	8	258
7	10	9	266
7.25	10.5-11	10	271
7.5	11.5-12	-	277
7.75	-	11	284
8	-	12	291
8.25	-	13	296

Questions

What comes with it?

A pair of Viper nylon plates with trucks, cushions and Bionic XS Stopper toe stops. Wheels and bearings are not included.

Which plate size do I need?

Find your Jackson boot size in the chart on this page. For a traditional mount, choose one size longer. For a derby mount, choose the size that puts the front axle under the ball of your foot.

What wheels can I use?

Wheels 57mm and larger. Atom does not recommend wheels smaller than 57mm on the Viper. The 8mm axles take standard 8mm skate bearings.

How is it different from the Falcon?

Both have Atom's 16 degree trucks and 8mm axles. The Viper Nylon has a nylon base. The Atom Pilot Falcon has a CNC machined aluminum base.

Specs

Plate	Atom Pilot Viper Nylon, black
Base	Reinforced Zytel nylon
Trucks	One-piece cast, 16 degree
Kingpin	Steel, Nyloc kingpin nuts
Cushions	Rubber
Axles	8mm
Toe stop	Bionic XS Stopper
Wheels	57mm and larger
Sold as	A pair
Plate sizes	5.25 to 8.25
